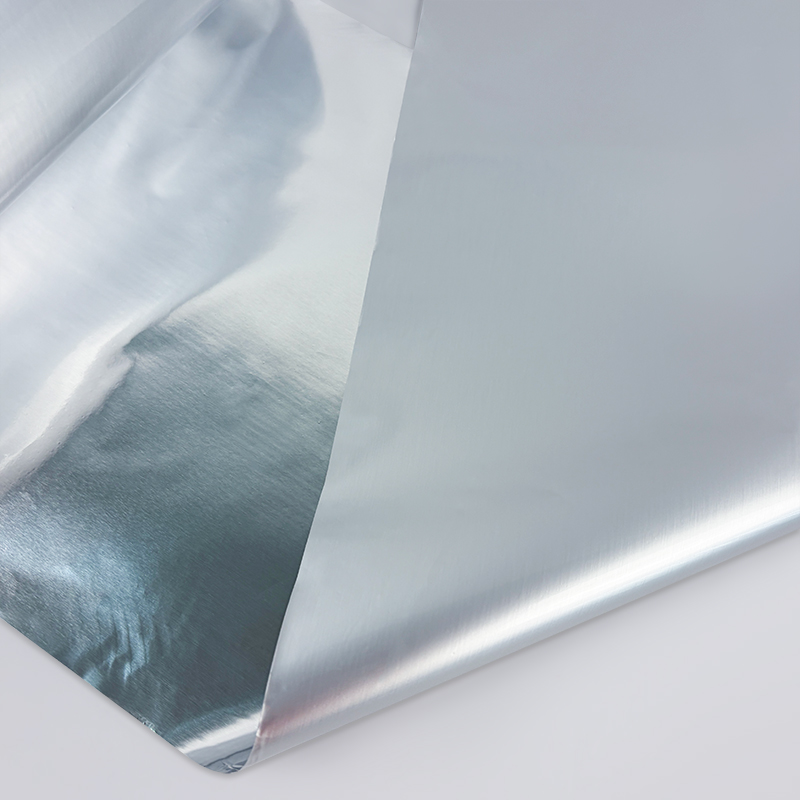

What Is PE Coated Film?

PE coated film refers to a composite structure formed by applying polyethylene onto substrates such as paper, PET, BOPP, or aluminum foil through an extrusion coating process. It is widely used as a sealing or functional layer in packaging systems.

Definition of Polyethylene Coated Film

Polyethylene coated film is not a standalone film type, but a functional coating layer used in composite structures.

• Heat sealing layer

• Moisture resistance support

• Flexibility improvement

What Materials Can Be PE Coated?

• Paper

• Aluminum foil

• PET film

• BOPP film

• Other flexible substrates

How Is PE Coated Film Manufactured?

Extrusion Coating Process

PE coated film is produced using extrusion coating equipment where molten polyethylene is cast onto a moving substrate. Process stability such as temperature control and surface treatment directly affects final quality.

Single-Side vs Double-Side Coating

Single-side coating is commonly used for heat sealing layers, while double-side coating is applied in special structural designs requiring additional protection or balance.

Common Coating Thickness

• 10–30 μm (light packaging)

• 30–80 μm (industrial packaging)

• 80 μm+ (heavy-duty applications)

Key Properties of PE Coated Film

1. Moisture Resistance: PE coating provides basic moisture resistance, depending on coating thickness and overall structure design.

2. Heat Sealability: PE is widely used as a heat sealing layer in flexible packaging due to its stable sealing performance and wide processing window.

3. Lamination Compatibility: PE coated surfaces improve adhesion in lamination structures, but surface treatment is often required for stable performance.

4. Chemical Resistance: PE offers resistance to oils and mild chemicals, making it suitable for food and industrial packaging applications.

5. Flexibility and Strength: PE coating improves flexibility while maintaining mechanical strength during converting and packaging processes.

Common Applications of PE Coated Film

Flexible Packaging

PE coated film is widely used in flexible packaging structures such as pouches, sachets, and roll stock materials. In most converting applications, it is selected as a heat sealing layer or functional inner layer in laminated structures. Its role is mainly to ensure stable sealing performance during high-speed packaging processes, especially in food and daily consumer goods packaging.

Food Packaging

In food packaging applications, PE coated film is commonly used as an inner sealing layer in contact or near-contact structures. Typical applications include snack packaging, dry food bags, frozen food packaging, and laminated paper-based food wraps. The material is preferred because it provides consistent heat sealing behavior and helps maintain packaging integrity during storage and transportation.

Pharmaceutical Packaging

PE coated film is used in pharmaceutical packaging structures that require clean processing conditions and reliable sealing performance. It is often applied in secondary packaging such as sachets, medical pouch films, and protective outer layers. In these applications, material consistency and sealing stability are more important than barrier performance alone.

Industrial Packaging

In industrial applications, PE coated film is used for protective wrapping, chemical packaging bags, and moisture-resistant packaging structures. Depending on the end-use requirements, it can be combined with aluminum foil, PET, or kraft paper to improve mechanical strength and handling performance. Industrial users typically prioritize durability, processability, and cost efficiency.

Construction and Insulation Materials

PE coated film is also used as a vapor barrier or protective facing layer in insulation and construction materials. It is commonly laminated with materials such as aluminum foil or fiberglass insulation to help reduce moisture penetration. In these systems, the PE layer contributes to sealing integrity and overall structural stability rather than standalone insulation performance.

PE Coated Film vs Other Barrier Materials

PE Coated Film vs Laminated Film

Laminated films provide higher barrier performance, while PE coated film mainly functions as a sealing layer.

PE Coated Film vs Metallized Film

Metallized film provides stronger oxygen and light barrier properties compared to PE coated structures.

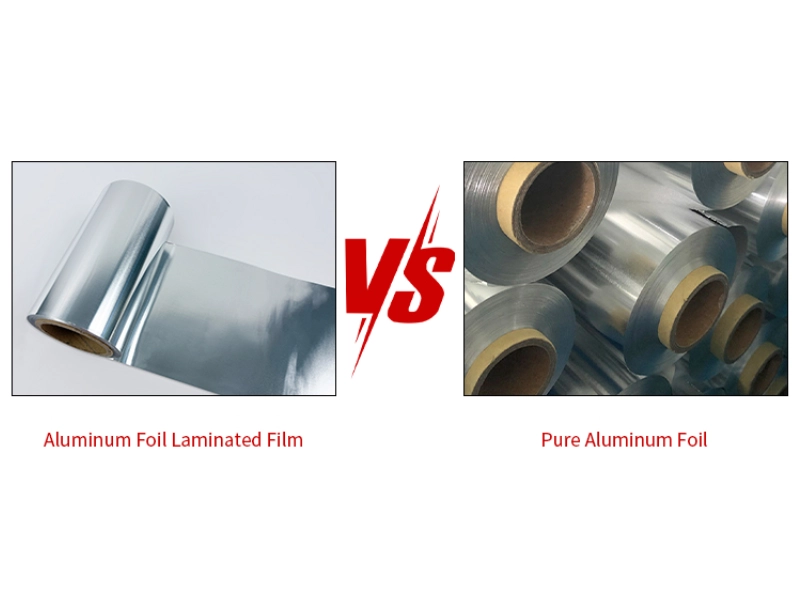

PE Coated Aluminum Foil vs PE Coated Plastic Film

Aluminum foil structures offer higher barrier performance, while plastic film structures provide better flexibility and lower cost.

How to Choose PE Coated Film

• Define application requirements

• Select appropriate base material

• Determine coating thickness

• Check heat sealing temperature range

• Balance cost and performance

About PengYuan

PengYuan is a China-based manufacturer specializing in extrusion coating and composite film production, including PE coated film and metallized film solutions for packaging and industrial applications.

With extrusion coating production lines and customized manufacturing capability, PengYuan supports converters with stable quality, flexible specifications, and consistent roll-to-roll supply.

Frequently Asked Questions

Is PE coated film recyclable?

Recyclability depends on material structure. Mono-material structures are easier to recycle than multi-layer composites.

Is PE coated film food safe?

Food-grade PE coated film is widely used in food packaging applications when produced under compliance standards.

Can PE coated film be heat sealed?

Yes, PE is widely used as a heat sealing layer in packaging structures.

What industries use PE coated film?

It is widely used in food packaging, pharmaceutical packaging, industrial packaging, and construction materials.

Conclusion

PE coated film is a functional layer used in extrusion coating structures rather than a standalone high-barrier material. Its value lies in sealing performance, processing compatibility, and cost efficiency.

For different applications, proper structure design and supplier selection are more important than focusing only on material definition.
