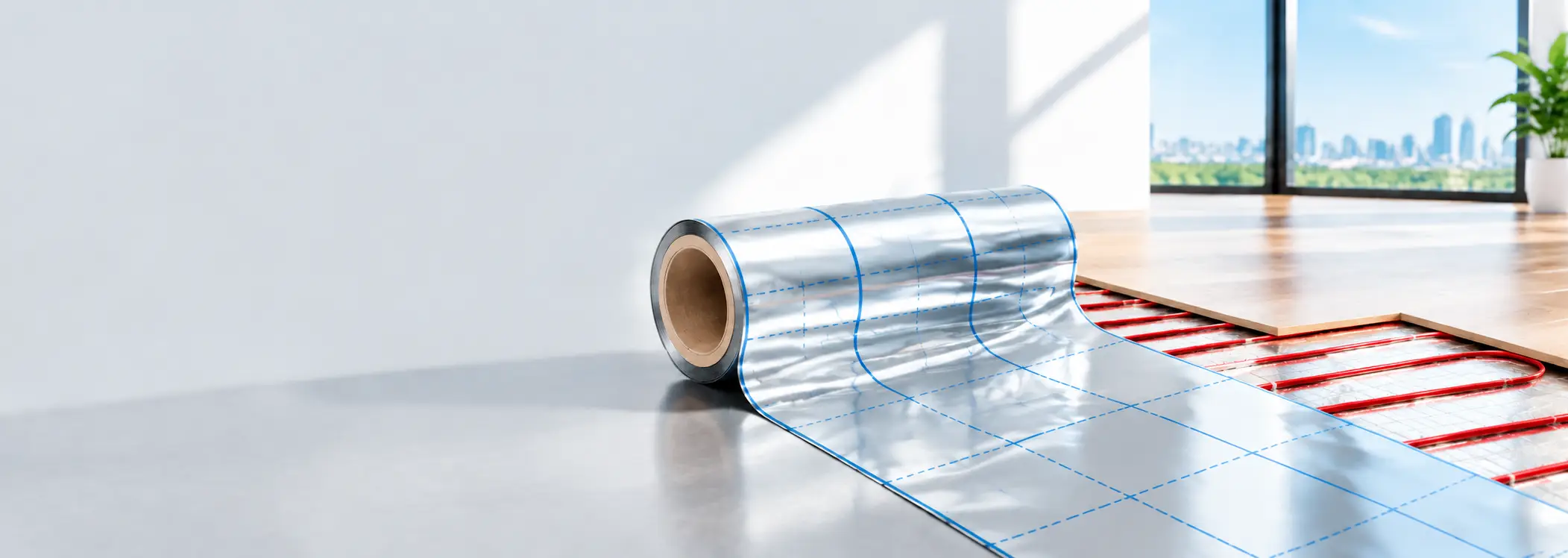

Floor Heating Reflective Film

High-performance reflective heating films engineered for efficient heat distribution, energy saving, and comfortable indoor environments.


Pengyuan provides customized heating film solutions for residential, commercial, and industrial projects with reliable quality, flexible specifications, and OEM support.
22+
Years Manufacturing Experience
Global Supply
Export Experience & Support
OEM / ODM
Customized Film Solutions
Quality Control
Reliable Production System

Customers trust Pengyuan

Yinuo-Group
CHINESE-ACADEMY-OF-SCIENCES
HUANENG-GROUP
Kingspan
LEOCH-INTERNATIONAL
National-Building-Material-Group
Polycell-International
SHANGHAI-ELECTRIC
Sinopec-Chemical-Construction
SXDG
WENS
BEIJING-CONSTRUCTION-ENGINEERING-GROUP
Bright-Dairy-Group
CAMEL

UNderfloor Heating Film Manufacturer

Pengyuan specializes in manufacturing underfloor heating reflective films and laminated materials for electric heating film systems, hydronic floor heating, and reflective insulation layers beneath heating pipes and cables. With over 22 years of laminated film manufacturing experience, a 30,000 m² production facility, and more than 50 production lines, we provide customized solutions for heat reflection, thermal insulation, and moisture protection.


Backed by an in-house R&D center, a CNAS-certified laboratory, and a monthly production capacity of over 1,200 tons, Pengyuan delivers consistent quality and reliable supply for global underfloor heating manufacturers and distributors.

founded in

+

Professional Employees

+

Customers Served

UNderfloor Heating Film Manufacturer

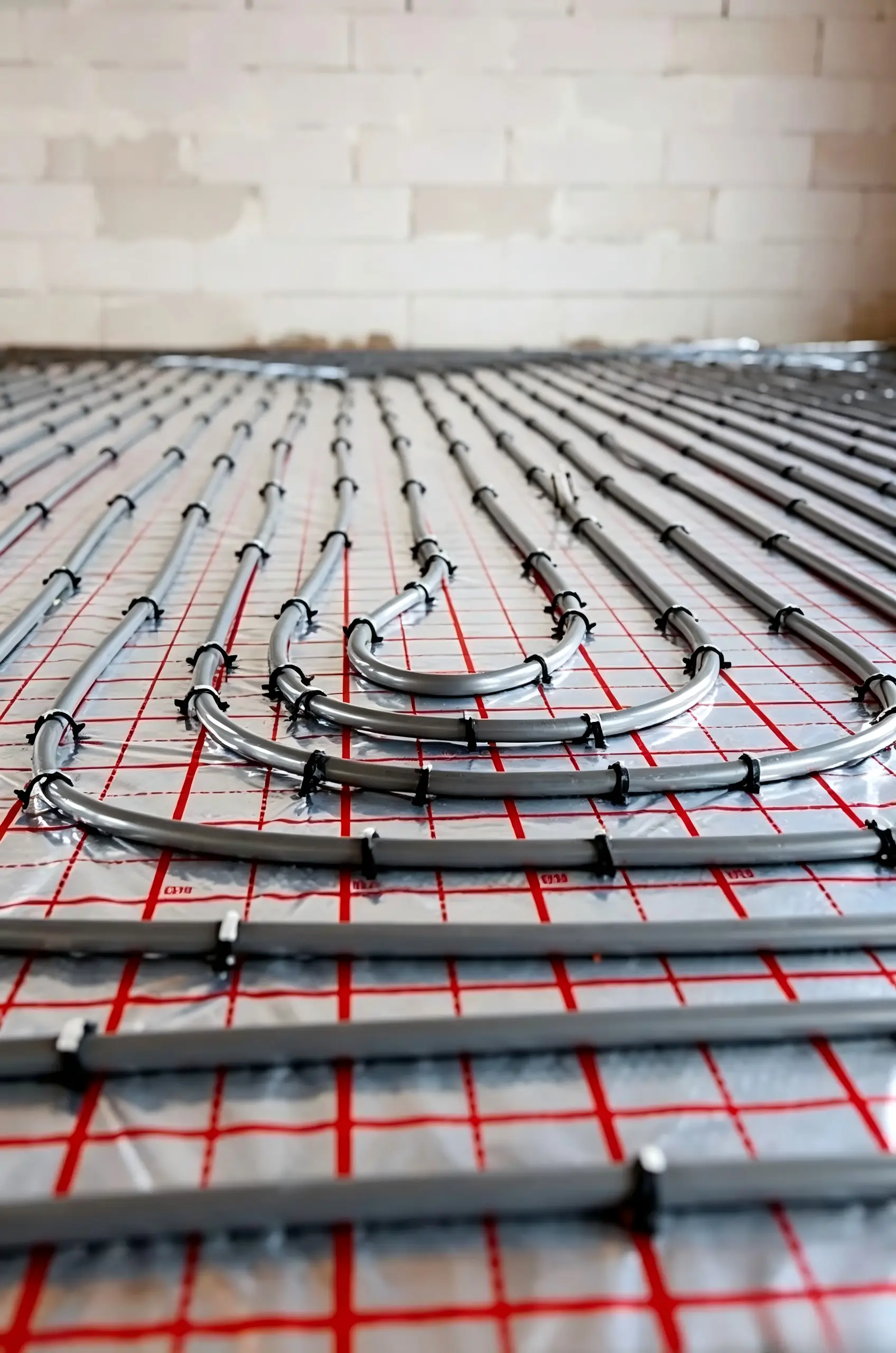

underfloor heating insulation film (1)
underfloor heating film (1)

Pengyuan Projects

Pengyuan develops and manufactures composite film solutions for a variety of industrial and protective packaging applications. Our composite films can be customized according to application requirements such as film structure, thickness, width, appearance, and packaging format.

underfloor heating system

Floor Heating Film for Underfloor Heating Systems


underfloor heating insulation film

Underfloor Heating Insulation Film for Screed Floor Installations


foil floor heating system

Foil Floor Heating System for Residential and Commercial Buildings

Underfloor Heating Foil Film

Underfloor Heating Foil Film for Insulation Board Installations

Recommended Product Categories

Printed Mesh-Reinforced Laminated Film
Printed Mesh-Reinforced Laminated Film combines mesh reinforcement with a laminated polyethylene-based structure to improve strength and dimensional stability while providing a customizable printed surface. Designed for applications requiring durable, reinforced film materials, it can be tailored in printing, thickness, roll width, and material configuration. Pengyuan offers customized manufacturing solutions to meet different application and processing requirements.
View More
Printed Underfloor Heating Reflective Film
Underfloor Heating Reflective Film is designed for underfloor heating systems, providing a reflective surface that helps redirect radiant heat toward the intended area when used as part of a suitable insulation assembly. Pengyuan offers customized printing, film dimensions, and material specifications to meet different floor heating project requirements.
View More

Contact Us


Tell us your specifications — structure, thickness, roll width and quantity — and our team will reply within 24 hours with a tailored quotation.

foil laminated film

Why Partners Choose Pengyuan

Professional Heating Film Manufacturer

With years of experience in reflective insulation and heating materials, Pengyuan provides reliable underfloor heating film solutions for global markets.

Stable Product Performance

High-quality raw materials, advanced production processes, and strict quality control ensure consistent heating efficiency and long-term reliability.

Customized OEM & ODM Solutions

Flexible specifications, sizes, structures, and packaging options to meet different project requirements and market demands.

Complete Technical Support

From product selection and application guidance to installation recommendations, our team supports every stage of your project.

Reliable Production Capacity

Efficient manufacturing systems and flexible production capabilities ensure stable supply for distributors, contractors, and large-scale projects.

Global Export Experience

Supporting international customers with professional communication, customized documentation, and reliable delivery solutions.

Floor Heating Reflective Film Guide

Floor heating reflective film is an important functional material used in modern underfloor heating assemblies. From reflective surfaces and insulation compatibility to printing, material selection and installation requirements, understanding its characteristics helps contractors, distributors and system manufacturers select suitable film solutions for different heating projects.

Overview

What Is Floor Heating Reflective Film?

Floor heating reflective film is a functional film material incorporated into underfloor heating systems to provide a reflective surface within the floor assembly. It is commonly installed alongside thermal insulation boards, heating pipes or electric heating elements, depending on the system design. Its primary role is to support the thermal management of the floor structure and provide a suitable surface for heating system installation.

Many underfloor heating systems use aluminum foil or metallized film as the reflective layer. These materials feature a low-emissivity surface that can help reduce radiant heat transfer when positioned opposite an appropriate air space. The overall thermal performance, however, also depends on the insulation layer, floor construction and installation configuration.

In addition to reflective properties, modern underfloor heating insulation film can be manufactured with different film substrates, laminated structures and printed surfaces to meet the requirements of specific heating systems. Manufacturers can customize the material according to thickness, roll width, appearance and downstream processing needs.

Common Film Material Options

  • Aluminum foil laminated film: Provides a metallic reflective surface and can be combined with polymer films for additional mechanical protection.
  • Metallized PET film: Features a thin aluminum-coated polyester surface, offering a lightweight option with good dimensional stability.
  • PE-based reflective film: Provides flexibility and can be customized for different film converting and installation requirements.
  • Printed laminated film: Combines a functional film surface with customized graphics, installation markings or product information.

How It Works

How Does Reflective Film Work?

The working principle of a radiant barrier for floor heating is based on controlling radiant heat transfer within the floor assembly. A reflective metallic surface can reduce radiant heat exchange when it faces an air gap. This helps direct radiant energy toward the intended side of the assembly under suitable installation conditions.

In hydronic underfloor heating systems, hot water circulates through pipes embedded in or installed beneath the floor structure. In electric systems, heating cables or mats generate heat beneath the finished floor. In both cases, thermal insulation below the heating components plays an important role in limiting unwanted downward heat loss.

Reflective film should therefore be considered as one component of a complete floor heating assembly rather than a replacement for conventional thermal insulation. When installed in direct contact with another solid material, its radiant reflection effect is limited because there is no air space across which radiant heat can be reflected.

Key Functions in a Heating Assembly

  • Radiant heat management: A low-emissivity reflective surface can help reduce radiant heat transfer across an adjacent air space.
  • System installation support: Printed markings can assist installers with pipe spacing, heating cable positioning and layout planning.
  • Surface protection: Suitable laminated constructions can provide additional protection against handling and installation-related damage.
  • Assembly compatibility: Flexible film formats can be adapted to different insulation boards and floor heating configurations.

Applications

Common Underfloor Heating Applications

Underfloor heating reflective film is used in different heating assemblies depending on the heating method, floor structure and installation environment. The material configuration should be selected according to the technical requirements of each project.

Hydronic Underfloor Heating Systems

Hydronic floor heating systems circulate heated water through flexible pipes installed beneath the floor surface. Reflective film can be incorporated into compatible insulation assemblies, while printed layouts may help installers identify pipe routes and maintain consistent installation spacing. The insulation layer beneath the heating pipes remains essential for controlling downward heat transfer.

Electric Underfloor Heating Systems

Electric floor heating systems use heating cables or prefabricated heating mats to generate heat. Depending on the system manufacturer's specifications, reflective film may be used as part of a supporting floor assembly. Material compatibility, electrical safety requirements and temperature resistance should be evaluated before use.

Screed Floor Installations

In screed-based heating systems, heating pipes are typically embedded in a cementitious layer above the insulation assembly. Reflective film may be incorporated into the designated installation layer, but its suitability depends on the complete floor design. Resistance to moisture, alkaline conditions and installation loads should be considered when selecting the film construction.

Insulation Board Installations

Reflective films can also be used in combination with pre-installed insulation boards or modular floor heating panels. In these applications, the film format and surface characteristics should be compatible with the board structure, fixing method and heating system layout.

Performance

Key Material and Performance Requirements

Selecting an appropriate underfloor heating insulation film requires more than considering its reflective appearance. The substrate, surface treatment, mechanical properties and compatibility with the installation environment all influence its suitability for long-term use.

Performance Factor What to Consider
Reflective Surface Surface uniformity, metallic coating quality and reflectivity requirements.
Film Thickness Suitable thickness for the required flexibility, handling and converting process.
Mechanical Strength Tensile strength, tear resistance and resistance to damage during installation.
Temperature Resistance Thermal stability under the operating temperature range of the heating assembly.
Moisture Resistance Resistance to moisture exposure and compatibility with the floor installation environment.
Dimensional Stability Ability to maintain film dimensions and appearance during handling and installation.
Printing Compatibility Ink adhesion, print clarity and resistance to handling-related abrasion.

It is important to distinguish between the reflective properties of a metallic surface and the thermal insulation performance of the complete floor assembly. Reflectivity alone does not determine the overall heat retention capability of an underfloor heating system. Insulation thickness, thermal conductivity, air gaps and installation conditions must also be considered.

Printing

Printed Reflective Film for Floor Heating

Printed floor heating film combines a functional reflective surface with customized visual information. Compared with plain reflective materials, printed film can provide practical installation references and product identification for heating system manufacturers, distributors and installation contractors.

Depending on the design, printing can be applied to show pipe spacing references, measurement scales, directional indicators, installation zones, logos and product specifications. These markings help improve the clarity of installation layouts and support standardized product presentation across different markets.

Common Printing Customization Options

  • Measurement grids: Repeated grid patterns for positioning heating pipes or cables.
  • Installation markings: Reference lines, spacing indicators and directional symbols.
  • Brand printing: Customized logos, product names and manufacturer identification.
  • Color customization: Different printing colors and graphic layouts based on project requirements.
  • Roll specifications: Customized dimensions to match installation equipment and downstream converting processes.

For printed underfloor heating reflective film, ink adhesion and surface compatibility are important quality considerations. The printing process should be matched with the film substrate and surface treatment to maintain clear markings during storage, transportation and installation.

Selection

How to Choose the Right Reflective Film

The right floor heating reflective film depends on the heating system design and the requirements of the installation environment. Contractors, system integrators and material distributors should evaluate the following factors before confirming a material specification.

1. Identify the Heating System Type

Determine whether the project uses hydronic pipes, electric heating cables or prefabricated heating mats. Different systems may require different film formats, printing layouts and installation characteristics.

2. Confirm the Floor Assembly Structure

Review the insulation board, heating element, screed layer and finished floor configuration. The reflective film should be positioned according to the system design, especially where radiant heat reflection is expected.

3. Evaluate Material Compatibility

Check the film substrate, lamination structure, temperature resistance and moisture exposure conditions. For applications involving cementitious materials, compatibility with alkaline environments should also be verified.

4. Determine the Required Specifications

Film thickness, roll width, roll length, printing design and packaging format should be determined according to installation requirements and production equipment.

5. Request Samples and Performance Testing

Before placing bulk orders, it is advisable to evaluate samples under the intended application conditions. Testing can include adhesion, tensile strength, dimensional stability, temperature resistance and printing durability where applicable.

Manufacturing & OEM

Custom Manufacturing and OEM Solutions

Different underfloor heating markets and installation systems have different material requirements. A customized floor heating reflective film solution allows manufacturers and distributors to specify the film construction, dimensions and printing details according to their product positioning and application needs.

Pengyuan provides customized laminated film manufacturing solutions for industrial and building material applications. For floor heating reflective film projects, customers can discuss substrate selection, reflective surface requirements, printing designs and roll specifications with our team.

Available Customization Considerations

  • Material selection: PET, PE and suitable laminated film constructions according to application requirements.
  • Film thickness: Customized thickness based on flexibility, strength and processing needs.
  • Roll width and length: Flexible dimensions for different installation systems and converting equipment.
  • Surface and printing: Reflective finishes, customized graphics, measurement grids and brand identification.
  • Packaging: Roll packaging and labeling options for bulk supply and distribution.

As an experienced composite film manufacturer, Pengyuan supports OEM and ODM cooperation for customers seeking customized printed laminated film and reflective film materials. Our production team can work with project specifications to evaluate suitable material configurations and manufacturing requirements.

To discuss a project, please share the intended heating system, application environment, preferred material, required thickness, roll width and estimated order quantity. Our team can help evaluate a suitable customized film solution.
